GFP-rab11 WT

价格:1500元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: GFP-rab11 WT
出品公司: Addgene
目录编号: 12674
存储实验室: Richard Pagano

载体骨架基本信息
载体名称: pEGFP-C1
载体出品公司: Clontech
载体抗性: 卡那霉素
空载体大小: 4700 bp
完整质粒大小: --
载体修饰: --
载体类型: 哺乳细胞表达
筛选标记: 新霉素G418
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: RAB11A (Homo sapiens),GFP-rab11 wild type
物种来源: H. sapiens (human)
插入大小: 717 bp
基因突变: --
GenBank编号 NM_004663
启动子 --
标签/融合蛋白:
GFP(主干网上的N个终端)
HA(插入N端子)
克隆方法: 限制性内切酶
5' 克隆位点: BAMHI(未破坏)
3' 克隆位点: BAMHI(未破坏)
5' 测序引物 EGFP-C
3' 测序引物 SV40pA-R

文献引用方法
材料和方法部分: GFP-rab11 WT was a gift from Richard Pagano (Addgene plasmid # 12674 ; http://n2t.net/addgene:12674 ; RRID:Addgene_12674)
参考文献部分: Rab proteins mediate Golgi transport of caveola-internalized glycosphingolipids and correct lipid trafficking in Niemann-Pick C cells. Choudhury A, Dominguez M, Puri V, Sharma DK, Narita K, Wheatley CL, Marks DL, Pagano RE. J Clin Invest. 2002 Jun . 109(12):1541-50. 10.1172/JCI15420 PubMed 12070301

载体图谱质粒图谱和多克隆位点信息

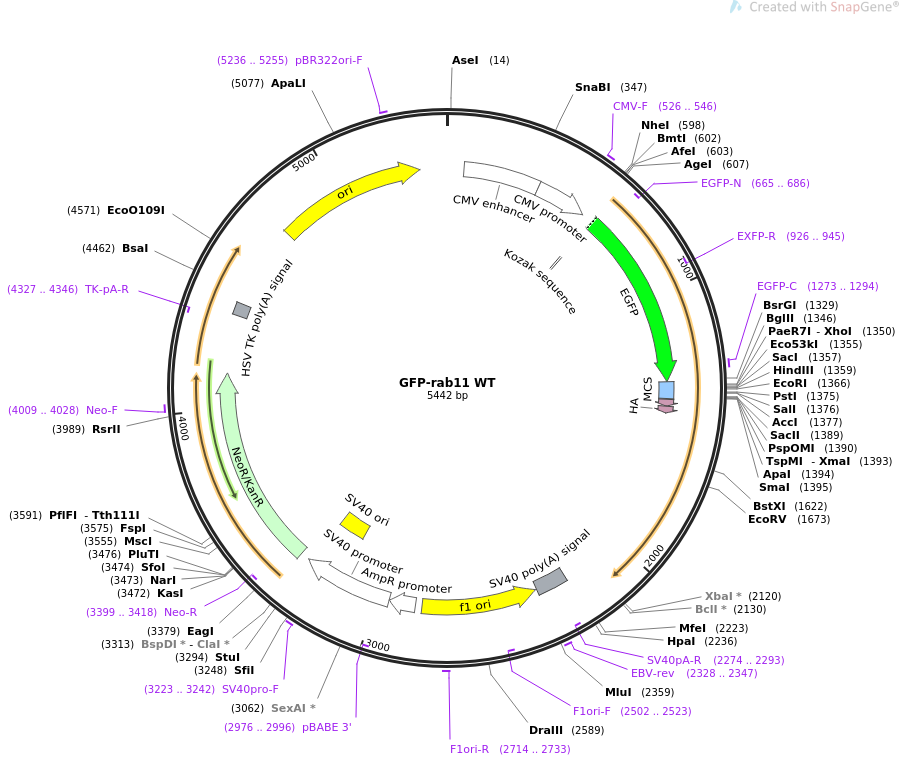

GFP-rab11 WT质粒图谱

载体简介

载体序列

LOCUS       GFP-rab11 WT              5442 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    GFP-rab11 WT
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5442)
  AUTHORS   Choudhury A, Dominguez M, Puri V, Sharma DK, Narita K, Wheatley CL,
            Marks DL, Pagano RE
  TITLE     Rab proteins mediate Golgi transport of caveola-internalized
            glycosphingolipids and correct lipid trafficking in Niemann-Pick C
            cells.
  JOURNAL   J Clin Invest. 2002 Jun . 109(12):1541-50.
  PUBMED    12070301
REFERENCE   2  (bases 1 to 5442)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..5442
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        68..371
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        372..575
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     526..546
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     regulatory      614..623
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             620..1336
                     /codon_start=1
                     /product="enhanced GFP"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     primer_bind     complement(665..686)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     complement(926..945)
                     /label=EXFP-R
                     /note="For distinguishing EGFP variants, reverse primer"
     primer_bind     1273..1294
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     misc_feature    1337..1402
                     /label=MCS
                     /note="multiple cloning site"
     CDS             1406..1432
                     /codon_start=1
                     /product="HA (human influenza hemagglutinin) epitope tag"
                     /label=HA
                     /translation="YPYDVPDYA"
     CDS             1433..1459
                     /codon_start=1
                     /product="HA (human influenza hemagglutinin) epitope tag"
                     /label=HA
                     /translation="YPYDVPDYA"
     polyA_signal    2237..2358
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(2274..2293)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     2328..2347
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      complement(2365..2820)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(2502..2523)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     2714..2733
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     promoter        2847..2951
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2953..3310
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     primer_bind     complement(2976..2996)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     rep_origin      3161..3296
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     3223..3242
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             3345..4139
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(3399..3418)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     4009..4028
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     complement(4327..4346)
                     /label=TK-pA-R
                     /note="Thymidine kinase polyA, reverse primer"
     polyA_signal    4371..4418
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      4747..5335
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     5236..5255
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 catgcattag ttattaatag taatcaatta cggggtcatt agttcatagc ccatatatgg
       61 agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc aacgaccccc
      121 gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg actttccatt
      181 gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat caagtgtatc
      241 atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc tggcattatg
      301 cccagtacat gaccttatgg gactttccta cttggcagta catctacgta ttagtcatcg
      361 ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag cggtttgact
      421 cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt tggcaccaaa
      481 atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa atgggcggta
      541 ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt cagatccgct
      601 agcgctaccg gtcgccacca tggtgagcaa gggcgaggag ctgttcaccg gggtggtgcc
      661 catcctggtc gagctggacg gcgacgtaaa cggccacaag ttcagcgtgt ccggcgaggg
      721 cgagggcgat gccacctacg gcaagctgac cctgaagttc atctgcacca ccggcaagct
      781 gcccgtgccc tggcccaccc tcgtgaccac cctgacctac ggcgtgcagt gcttcagccg
      841 ctaccccgac cacatgaagc agcacgactt cttcaagtcc gccatgcccg aaggctacgt
      901 ccaggagcgc accatcttct tcaaggacga cggcaactac aagacccgcg ccgaggtgaa
      961 gttcgagggc gacaccctgg tgaaccgcat cgagctgaag ggcatcgact tcaaggagga
     1021 cggcaacatc ctggggcaca agctggagta caactacaac agccacaacg tctatatcat
     1081 ggccgacaag cagaagaacg gcatcaaggt gaacttcaag atccgccaca acatcgagga
     1141 cggcagcgtg cagctcgccg accactacca gcagaacacc cccatcggcg acggccccgt
     1201 gctgctgccc gacaaccact acctgagcac ccagtccgcc ctgagcaaag accccaacga
     1261 gaagcgcgat cacatggtcc tgctggagtt cgtgaccgcc gccgggatca ctctcggcat
     1321 ggacgagctg tacaagtccg gactcagatc tcgagctcaa gcttcgaatt ctgcagtcga
     1381 cggtaccgcg ggcccgggat ccatgtaccc atacgatgtt ccggattacg cttacccata
     1441 cgatgttccg gattacgctg gtacccgcga cgacgagtac gactacctct ttaaagttgt
     1501 ccttattgga gattctggtg ttggaaagag taatctcctg tctcgattta ctcgaaatga
     1561 gtttaatctg gaaagcaaga gcaccattgg agtagagttt gcaacaagaa gcatccaggt
     1621 tgatggaaaa acaataaagg cacagatatg ggacacagca gggcaagagc gatatcgagc
     1681 tataacatca gcatattatc gtggagctgt aggtgcctta ttggtttatg acattgctaa
     1741 acatctcaca tatgaaaatg tagagcgatg gctgaaagaa ctgagagatc atgctgatag
     1801 taacattgtt atcatgcttg tgggcaataa gagtgatcta cgtcatctca gggcagttcc
     1861 tacagatgaa gcaagagctt ttgcagaaaa gaatggtttg tcattcattg aaacttcggc
     1921 cctagactct acaaatgtag aagctgcttt tcagacaatt ttaacagaga tttaccgcat
     1981 tgtttctcag aagcaaatgt cagacagacg cgaaaatgac atgtctccaa gcaacaatgt
     2041 ggttcctatt catgttccac caaccactga aaacaagcca aaggtgcagt gctgtcagaa
     2101 catctaagga tccaccggat ctagataact gatcataatc agccatacca catttgtaga
     2161 ggttttactt gctttaaaaa acctcccaca cctccccctg aacctgaaac ataaaatgaa
     2221 tgcaattgtt gttgttaact tgtttattgc agcttataat ggttacaaat aaagcaatag
     2281 catcacaaat ttcacaaata aagcattttt ttcactgcat tctagttgtg gtttgtccaa
     2341 actcatcaat gtatcttaac gcgtaaattg taagcgttaa tattttgtta aaattcgcgt
     2401 taaatttttg ttaaatcagc tcatttttta accaataggc cgaaatcggc aaaatccctt
     2461 ataaatcaaa agaatagacc gagatagggt tgagtgttgt tccagtttgg aacaagagtc
     2521 cactattaaa gaacgtggac tccaacgtca aagggcgaaa aaccgtctat cagggcgatg
     2581 gcccactacg tgaaccatca ccctaatcaa gttttttggg gtcgaggtgc cgtaaagcac
     2641 taaatcggaa ccctaaaggg agcccccgat ttagagcttg acggggaaag ccggcgaacg
     2701 tggcgagaaa ggaagggaag aaagcgaaag gagcgggcgc tagggcgctg gcaagtgtag
     2761 cggtcacgct gcgcgtaacc accacacccg ccgcgcttaa tgcgccgcta cagggcgcgt
     2821 caggtggcac ttttcgggga aatgtgcgcg gaacccctat ttgtttattt ttctaaatac
     2881 attcaaatat gtatccgctc atgagacaat aaccctgata aatgcttcaa taatattgaa
     2941 aaaggaagag tcctgaggcg gaaagaacca gctgtggaat gtgtgtcagt tagggtgtgg
     3001 aaagtcccca ggctccccag caggcagaag tatgcaaagc atgcatctca attagtcagc
     3061 aaccaggtgt ggaaagtccc caggctcccc agcaggcaga agtatgcaaa gcatgcatct
     3121 caattagtca gcaaccatag tcccgcccct aactccgccc atcccgcccc taactccgcc
     3181 cagttccgcc cattctccgc cccatggctg actaattttt tttatttatg cagaggccga
     3241 ggccgcctcg gcctctgagc tattccagaa gtagtgagga ggcttttttg gaggcctagg
     3301 cttttgcaaa gatcgatcaa gagacaggat gaggatcgtt tcgcatgatt gaacaagatg
     3361 gattgcacgc aggttctccg gccgcttggg tggagaggct attcggctat gactgggcac
     3421 aacagacaat cggctgctct gatgccgccg tgttccggct gtcagcgcag gggcgcccgg
     3481 ttctttttgt caagaccgac ctgtccggtg ccctgaatga actgcaagac gaggcagcgc
     3541 ggctatcgtg gctggccacg acgggcgttc cttgcgcagc tgtgctcgac gttgtcactg
     3601 aagcgggaag ggactggctg ctattgggcg aagtgccggg gcaggatctc ctgtcatctc
     3661 accttgctcc tgccgagaaa gtatccatca tggctgatgc aatgcggcgg ctgcatacgc
     3721 ttgatccggc tacctgccca ttcgaccacc aagcgaaaca tcgcatcgag cgagcacgta
     3781 ctcggatgga agccggtctt gtcgatcagg atgatctgga cgaagagcat caggggctcg
     3841 cgccagccga actgttcgcc aggctcaagg cgagcatgcc cgacggcgag gatctcgtcg
     3901 tgacccatgg cgatgcctgc ttgccgaata tcatggtgga aaatggccgc ttttctggat
     3961 tcatcgactg tggccggctg ggtgtggcgg accgctatca ggacatagcg ttggctaccc
     4021 gtgatattgc tgaagagctt ggcggcgaat gggctgaccg cttcctcgtg ctttacggta
     4081 tcgccgctcc cgattcgcag cgcatcgcct tctatcgcct tcttgacgag ttcttctgag
     4141 cgggactctg gggttcgaaa tgaccgacca agcgacgccc aacctgccat cacgagattt
     4201 cgattccacc gccgccttct atgaaaggtt gggcttcgga atcgttttcc gggacgccgg
     4261 ctggatgatc ctccagcgcg gggatctcat gctggagttc ttcgcccacc ctagggggag
     4321 gctaactgaa acacggaagg agacaatacc ggaaggaacc cgcgctatga cggcaataaa
     4381 aagacagaat aaaacgcacg gtgttgggtc gtttgttcat aaacgcgggg ttcggtccca
     4441 gggctggcac tctgtcgata ccccaccgag accccattgg ggccaatacg cccgcgtttc
     4501 ttccttttcc ccaccccacc ccccaagttc gggtgaaggc ccagggctcg cagccaacgt
     4561 cggggcggca ggccctgcca tagcctcagg ttactcatat atactttaga ttgatttaaa
     4621 acttcatttt taatttaaaa ggatctaggt gaagatcctt tttgataatc tcatgaccaa
     4681 aatcccttaa cgtgagtttt cgttccactg agcgtcagac cccgtagaaa agatcaaagg
     4741 atcttcttga gatccttttt ttctgcgcgt aatctgctgc ttgcaaacaa aaaaaccacc
     4801 gctaccagcg gtggtttgtt tgccggatca agagctacca actctttttc cgaaggtaac
     4861 tggcttcagc agagcgcaga taccaaatac tgttcttcta gtgtagccgt agttaggcca
     4921 ccacttcaag aactctgtag caccgcctac atacctcgct ctgctaatcc tgttaccagt
     4981 ggctgctgcc agtggcgata agtcgtgtct taccgggttg gactcaagac gatagttacc
     5041 ggataaggcg cagcggtcgg gctgaacggg gggttcgtgc acacagccca gcttggagcg
     5101 aacgacctac accgaactga gatacctaca gcgtgagcta tgagaaagcg ccacgcttcc
     5161 cgaagggaga aaggcggaca ggtatccggt aagcggcagg gtcggaacag gagagcgcac
     5221 gagggagctt ccagggggaa acgcctggta tctttatagt cctgtcgggt ttcgccacct
     5281 ctgacttgag cgtcgatttt tgtgatgctc gtcagggggg cggagcctat ggaaaaacgc
     5341 cagcaacgcg gcctttttac ggttcctggc cttttgctgg ccttttgctc acatgttctt
     5401 tcctgcgtta tcccctgatt ctgtggataa ccgtattacc gc
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
